Project Description

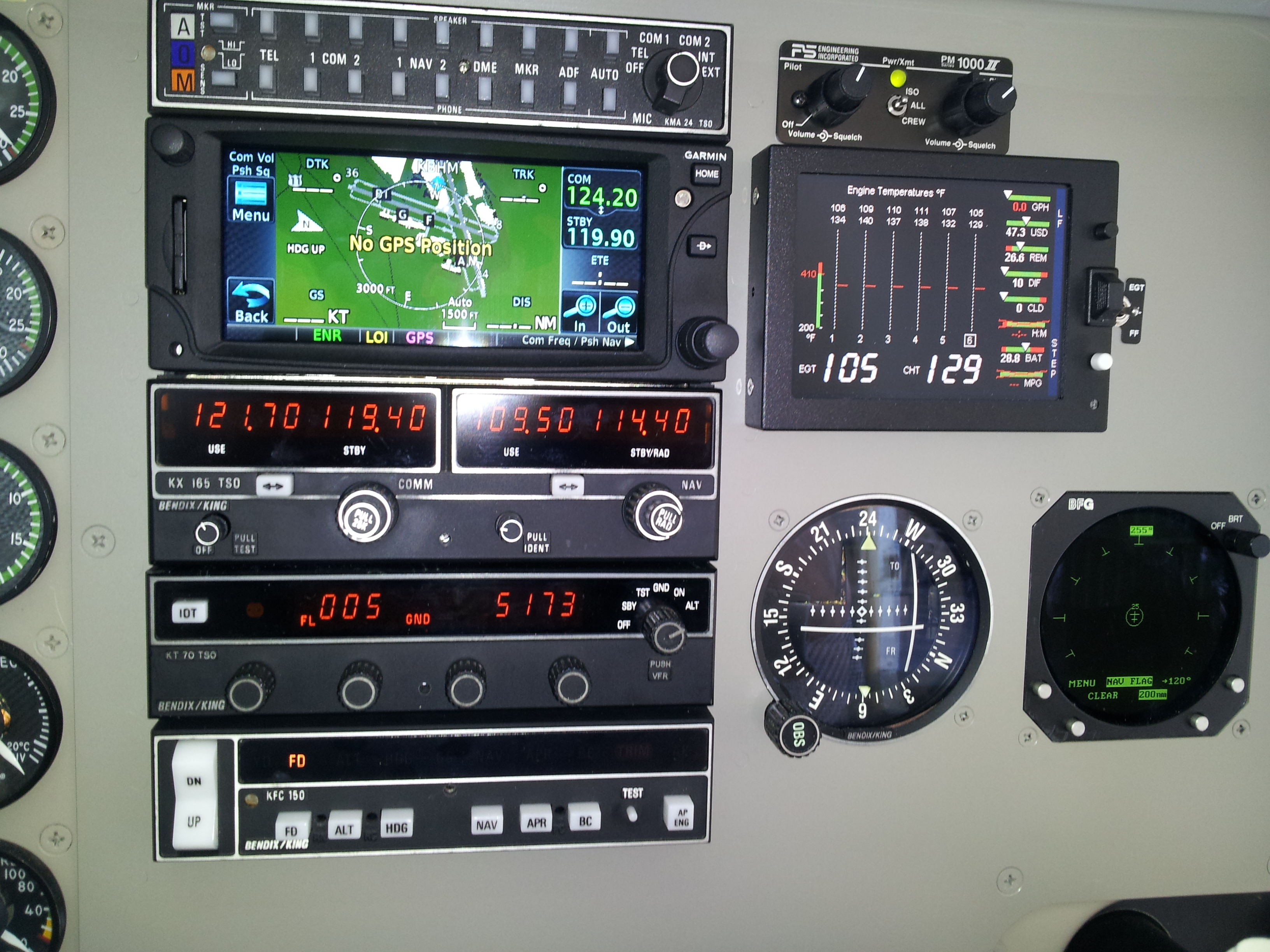

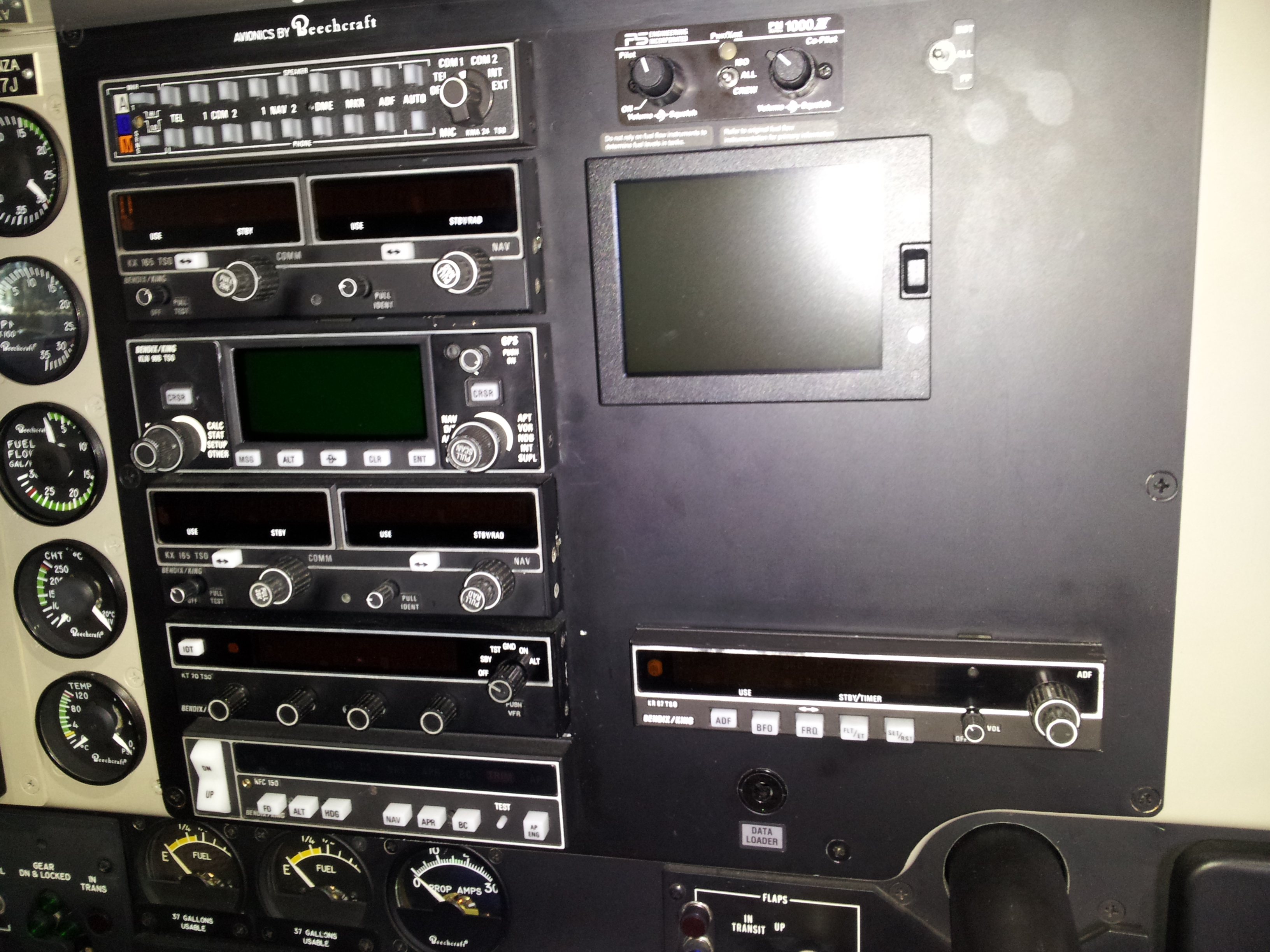

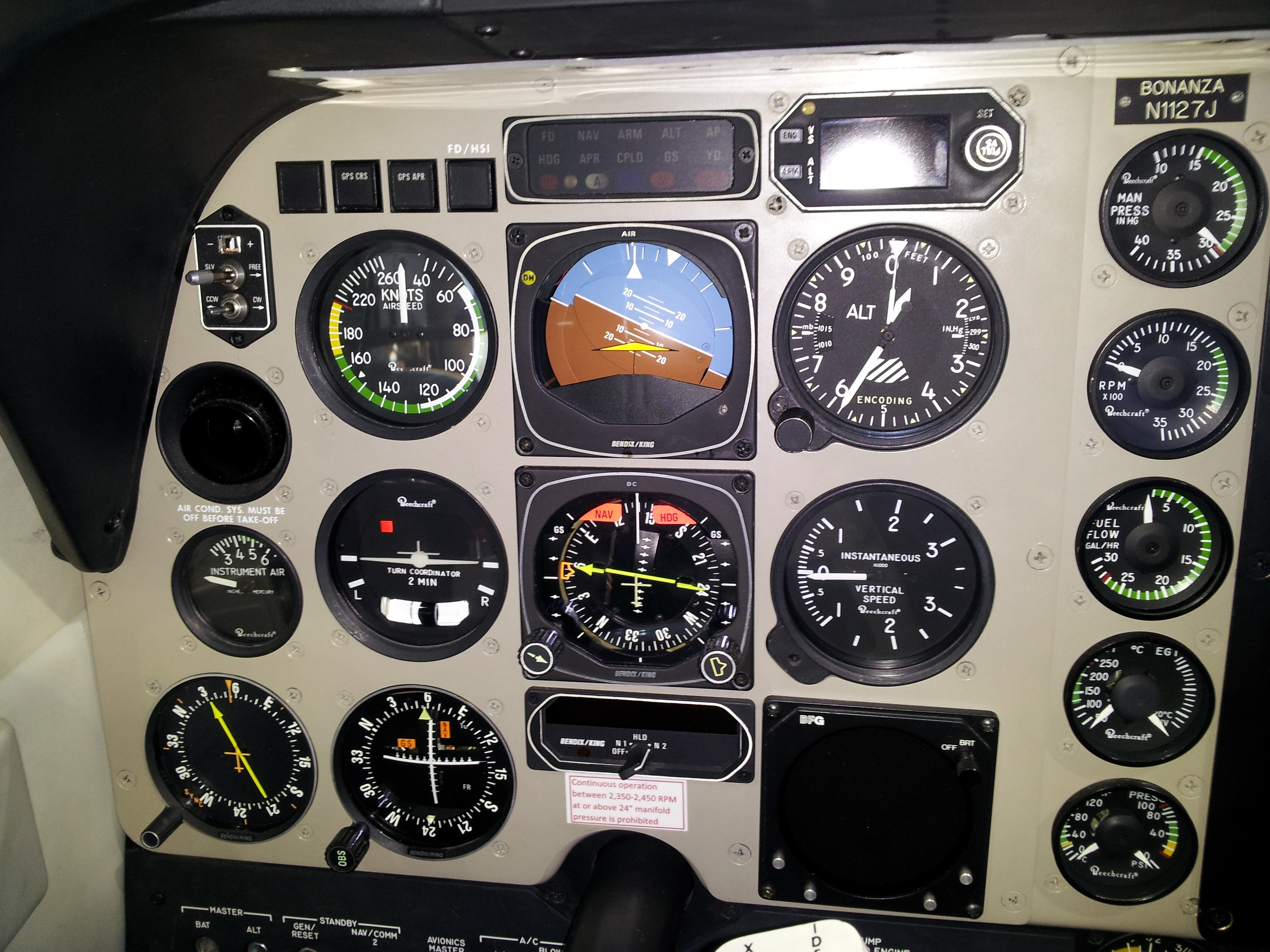

This Bonanza was factory equipped with the standard Honeywell analog avionics suite with KLN 90B, KX 165, KI 525A, KI 256 and KAP 140 autopilot.  Most of that was removed and a new instrument panel was fabricated for the pilot panel as well as a new radio stack panel.  The G500 remote equipment was installed in the avionics rack in the tail of the aircraft.  A GTN 650 was installed replacing the KLN 90B and KX 165 #1.  The new pilot panel and radio panel was paint matched to the original panel.
